Four Points Compression Test Machine With PC Controlled

    Buy cheap Four Points Compression Test Machine With PC Controlled from wholesalers

    Buy cheap Four Points Compression Test Machine With PC Controlled from wholesalers
    • Buy cheap Four Points Compression Test Machine With PC Controlled from wholesalers

    Four Points Compression Test Machine With PC Controlled

    Ask Lasest Price
    Brand Name : MIYU
    Model Number : MY-SFKY-200
    Certification : CE, UL, CSA
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 200 sets / month
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    Four Points Compression Test Machine With PC Controlled

    High quality Four points compression test machine (MY-SFKY-200) with PC controlled


    Description

    This machine is mainly used for the special life testing machine of frequency converter power supply detection keys. It has the functions of automatic memory of times, power-down memory, cumulative life times, automatic shutdown of set times and so on. Strength correction, adjustable position and spacing, conduction test function. This key life tester is especially suitable for fatigue testing of keys of frequency converter controller.

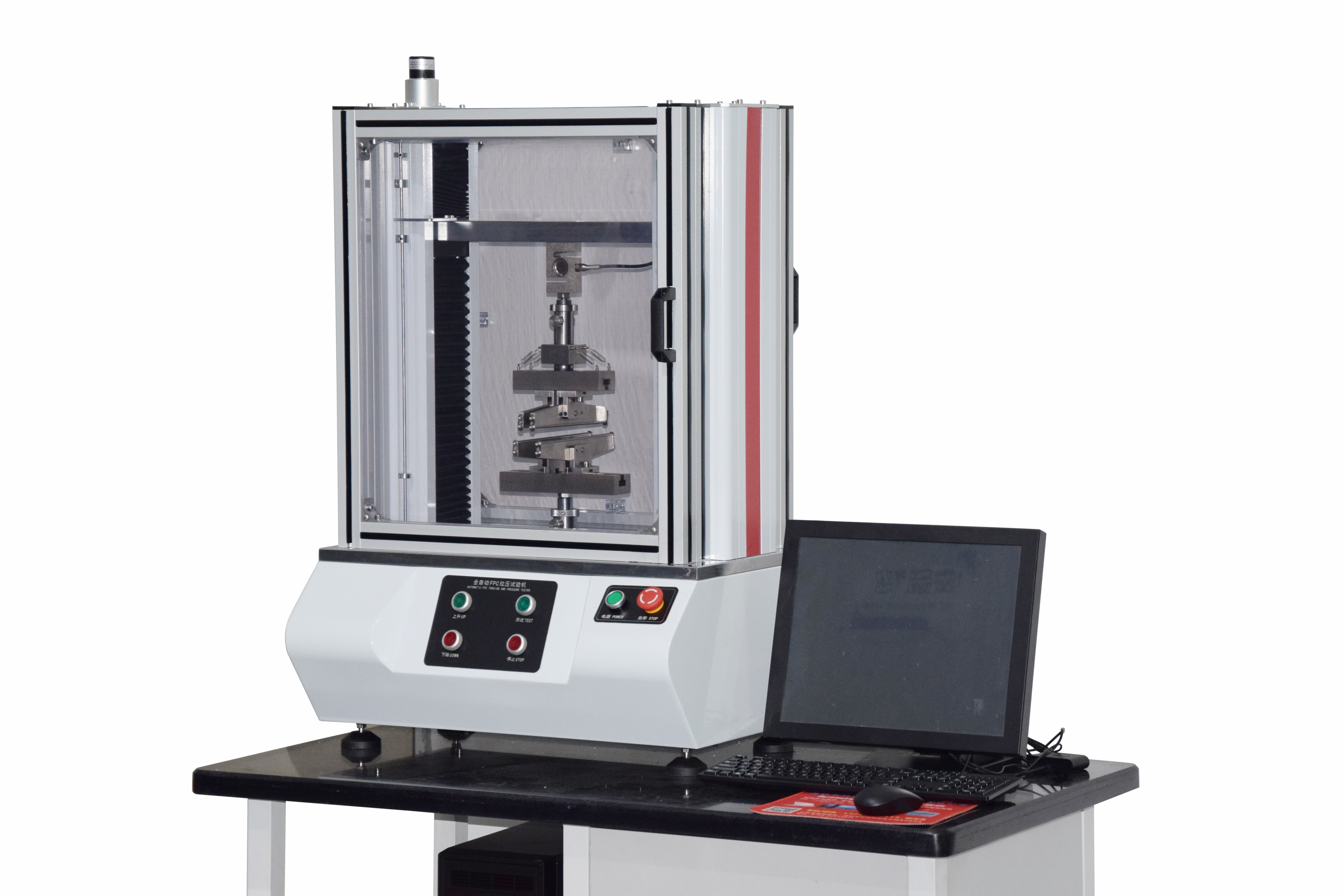

    Tester pictures



    Technical Specification


    1. Load: 50kg,100kg,200kg,300kg,500kg,optional
    2. Load precision: ±0.5%
    3. Testing machine grade: level 1
    4. Unit selection: Kg,N,lb
    5. Displacement accuracy: ±0.05 mm
    6. Displacement resolution: ≤0.01mm
    7. Velocity accuracy: Higher than ±1%f.s
    8. Maximum test stroke:200mm
    9. Minimum test stroke: 0.01mm
    10. Test speed range: 0-500mm / min
    11. Optional fixture: point pressure, stretching and other functional jigs
    12. Upper jig stroke: 220mm
    13. Lower jig stroke: 300mm
    14. 4-point fixture width: 210mm
    15. Pressure rod diameter: Ф3mm,Ф5mm,Ф6mm,Ф8mm ,Selection of 1 species
    16. Machine size: 650 x 440 x 1000 mm
    17.Control mode: Stepping motor + board card + computer
    18. Power supply: 220V, 50/60HZ
    19. Power: 600W





    Certificates



    Partner



    Shipment
    By sea, by air, by truck, by courier, by train....



    FAQ


    1. Do you offer after-sales service? How can I ask for that? And how about the warranty?

    Every machine from our factory has a 1 year warranty after shipment. Generally, we offer 1 year for the FREE maintenance for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.


    2. What’s the delivery term?

    Normally, the delivery time is 10-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.


    3. Do you accept customization service? Can I have my logo on the machine?
    Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.


    4. How to install and use the product?
    We will send you operating instructions, most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at your location.
