    360 Degress Cable Bending Tester Sheet Metal Case With Various Colors

    Ask Lasest Price
    Brand Name : MIYU
    Model Number : MY-XC-360
    Certification : CE, UL, CSA
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 200 sets / month
    Delivery Time : 15-20 days
    • Product Details
    • Company Profile

    360 Degress Cable Bending Tester Sheet Metal Case With Various Colors


    360-degress, Wire/Cable Bending Tester (MY-XC-360), Sheet metal material with white color


    Technical Specification


    1. Test standard: clip, flat angle
    2. Test station: 6
    3. Test speed: 5-60 times / minute adjustable
    4. Test times: 99999999 times
    5. Rotation mode: forward rotation mode, reverse rotation mode, positive and negative rotation mode
    6. Test mode: life test, continuity test
    7. Counterweight: 50g,100g ,200g ,300g , 500g each six
    8. Test angle range: 0- ±180° (arbitrary setting)
    9. External Dimension: 1160x450x1100mm
    10. Control mode: stepper motor + PLC + touch screen control
    11. Power supply: 220V, 50/60HZ
    12. Power: 500W

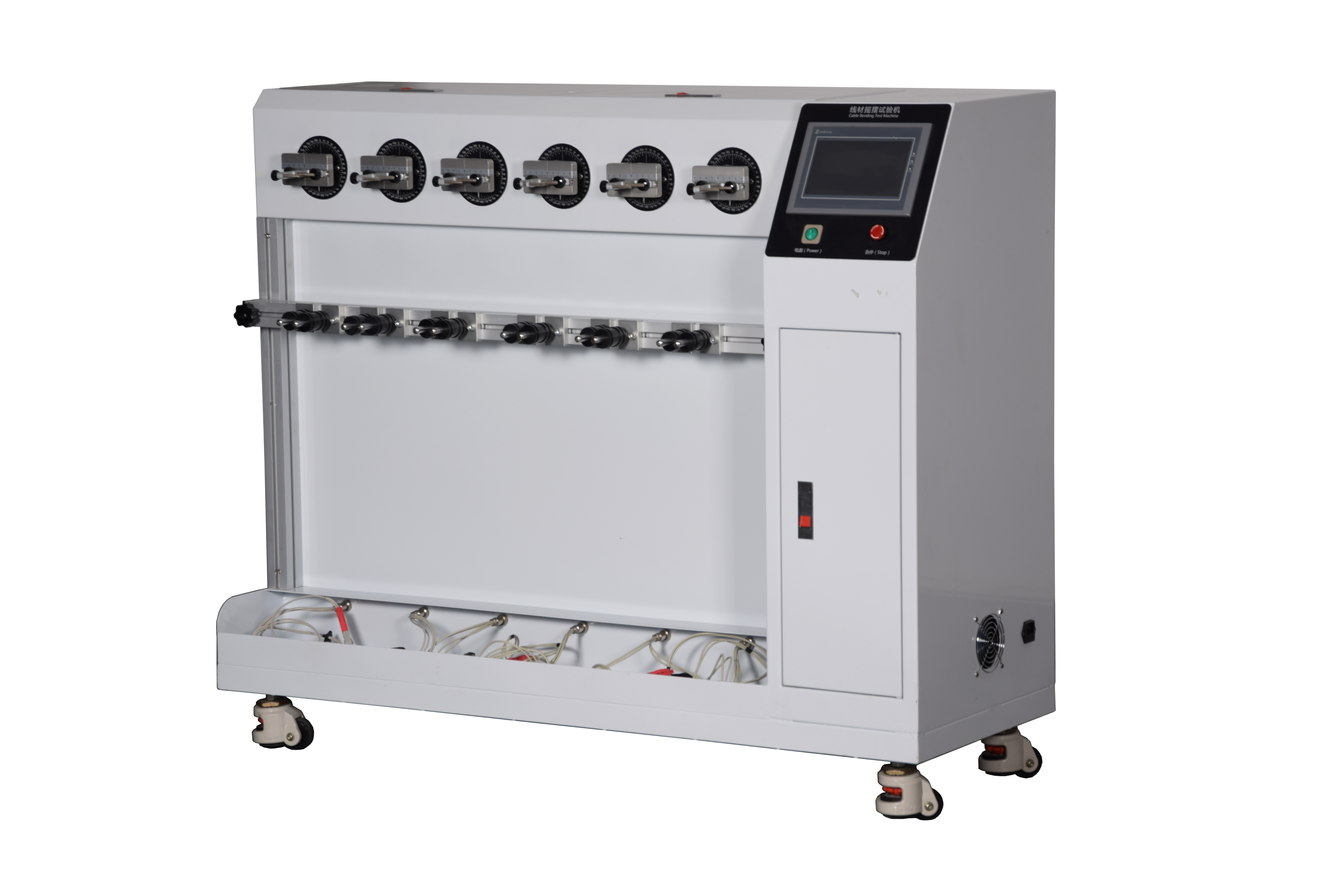

    Tester pictures



    Certificates


    Partner


    Shipment

    By sea, by air, by truck, by courier, by train....



    FAQ


    1. Do you offer after-sales service? How can I ask for that? And how about the warranty?

    Every machine from our factory has a 1 year warranty after shipment. Generally, we offer 1 year for the FREE maintenance for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.


    2. What’s the delivery term?

    Normally, the delivery time is 10-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.


    3. Do you accept customization service? Can I have my logo on the machine?
    Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.


    4. How to install and use the product?
    We will send you operating instructions, most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at your location.
