    Environmental Rain Water Resistance Test Chamber for Ipx3 Ipx4 Testing

    Ask Lasest Price
    Brand Name : MIYU
    Model Number : MY-LY
    Certification : CE, UL, CSA
    Payment Terms : T/T, Western Union, L/C, MoneyGram
    Supply Ability : 200 sets/month
    Delivery Time : 20-25days
    • Product Details
    • Company Profile

    Environmental Rain Water Resistance Test Chamber for Ipx3 Ipx4 Testing

    Environmental Rain Water Resistance Test Chamber for Ipx3 Ipx4 Testing


    Rain water spray resistance test chamber
    Rain water spray resistance test chamber is mainly used to simulate the lamps in the rain, to assess the ability of the lamp against water penetration through the impact of lamps by the rain. It Applies to the assessment of electrical products, housings and seals in the rain environment that can guarantee the good performance of equipment and components. The basic structure and principle of the equipment and performance conforms to the GB10485-89 "external lighting and signal trailers and trailers basic environmental testing"standard corresponding to the technical specifications and requirements, also meet the IP3, IP4 requirements.
    The chamber shell material is treated with steel plate paint, the inner material is stainless steel light board. Large area of visual glass is easy to observe the specimen status inside the chamber. The bottom of the chamber with high quality fixed PU activity wheel, with user-friendly move.

    Water spray test equipment us designed according to the standard of IEC60529, GB2423, GB7000.1, GB4208-1993,(shell protection grade).



    Features:
    1. Touch screen controller
    2. Oscillating tubes are stainless steel
    3. Stainless steel nozzles is removable for cleaning or replacing
    4. Nozzles can be turned on or off to adjust the arc of the spray from the tube
    5. Water supply unit includes water filter, pump, flow meter, electromagnetic valve and switch valve.
    6. Two available flow rates to meet major standards
    7. Oscillating tube angle can be adjusted freely from 40 ° to almost 360 °
    8. Stainless steel specimen support with easy adjustment for height and with two specimen bases

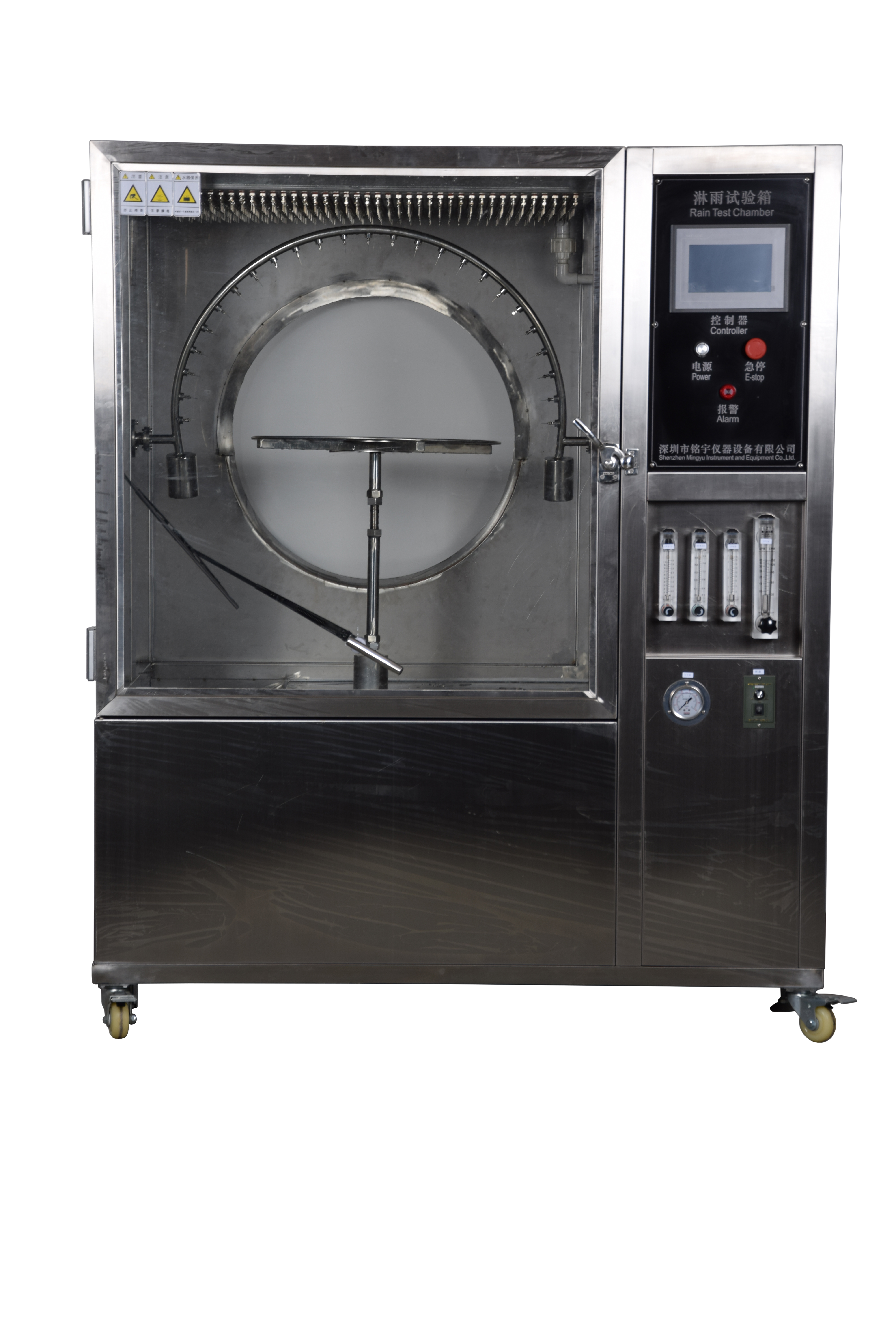

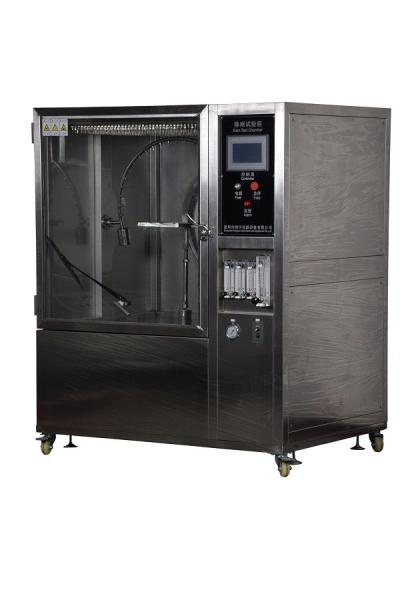

    Tester picture


    Specification parameter:


    Model NoMY-LYMY-LYMY-LY
    Volume500L1000L
    Internal dimension (mm)W600 * H600 * D600W800 * H800 * D800W1000 * H1000 * D1000
    External dimension (mm)W1200 * H1450 * D850W1400 * H1650 * D950W1600 * H1850 * D1150
    IP degreeIPX3, IPX4 or other IP1~8
    Sample shelf sizeφ400mm
    Test box rotating speed1 ~5rpm/min , adjustable
    Spray orifice diameterφ0.4mm
    Water pipe diameterφ16mm
    Test box materialHigh quality 304 stainless steel mesh plate
    Spray ring radius375 and 500mm
    Swing pipe±45°,±60°,±90°,±180°(theory number)
    Swing pipe swing1-300° (adjustable) stepper motor control
    Swing pipe materialHigh quality 304 stainless steel seamless pipe
    Meet the standardIEC60529:1989+A1:1999,GB4208-2008,GB7000.1(IPX3,IPX4)







    FAQ


    1. Do you offer after-sales service? How can I ask for that? And how about the warranty?

    Every machine from our factory has a 1 year warranty after shipment. Generally, we offer 1 year for the FREE maintenance for our customers. If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.


    2. What’s the delivery term?

    Normally, the delivery time is 10-25 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.


    3. Do you accept customization service? Can I have my logo on the machine?
    Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.


    4. How to install and use the product?
    We will send you operating instructions, most of our machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at your location.
